Hose Hydraulic Without End Fitting Products

We have hydraulic hose in a variety of diameters and operating pressures for custom applications, and hydraulic quick couplers that form a leak-free connection and are easy to connect/disconnect. Hydraulic general-purpose hose assemblies feature a rugged synthetic rubber cover that helps provide long-lasting durability, the ability to withstand extreme temperatures, and maximum operating pressures up to 5000 psi. We have hydraulic high-pressure and medium-pressure hose assemblies suitable for use in general-purpose and industrial applications. Select from thermoplastic and synthetic rubber hydraulic hoses with maximum operating pressures up to 10,000 psi, in a variety of diameters and hose lengths to meet your needs. Help protect your hoses from heat & fire wear and other hostile conditions with easy-to-install hydraulic hose covers.

SAE100 R1

Products Detail

Country of Origin

  • Made in India / Imported

Material

  • Rubber

Reinforcement

  • One Steel Wire Braided

Working Pressure

  • 10Bar to 225Bar

Temperature

  • -40°C to +100°C

Use For

  • Industrial

Available Size (ID)

  • 6.4mm (1/4") to 100mm (4")

Application

  • For Petroleum Based Hydraulic Fluids and Lubricating Oils

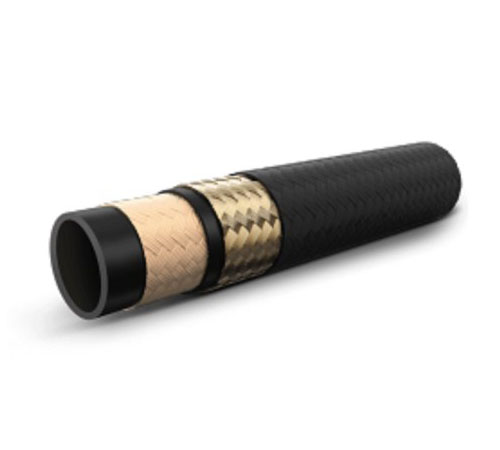

SAE100 R2

Products Detail

Country of Origin

  • Made in India / Imported

Material

  • Rubber

Reinforcement

  • Two Steel Wire Braided

Working Pressure

  • 50Bar to 400Bar

Temperature

  • -40°C to +100°C

Use For

  • Industrial

Available Size (ID)

  • 6.4mm (1/4") to 100mm (4")

Application

  • For Petroleum Based Hydraulic Fluids and Lubricating Oils

Tractor Trolly Hose

Products Detail

Country of Origin

  • Made in India / Imported

Material

  • Rubber

Reinforcement

  • One Steel Wire Braided

Working Pressure

  • Upto 12Bar

Temperature

  • -40°C to +100°C

Use For

  • Industrial

Available Size (ID)

  • 10mm (3/8") to 12mm (1/2")

Application

  • For Petroleum Based Hydraulic Fluids and Lubricating Oils

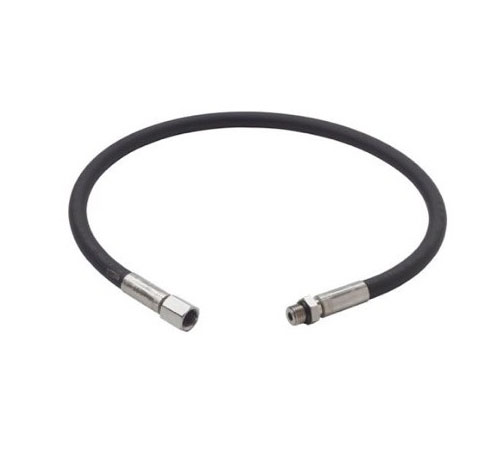

Jack Hose

Products Detail

Country of Origin

  • Made in India / Imported

Material

  • Rubber

Reinforcement

  • Two Steel Wire Braided

Working Pressure

  • 700Bar (10000 PSI)

Temperature

  • -40°C to +100°C

Use For

  • Industrial

Available Size (ID)

  • 6.4mm (1/4") to 10mm (3/8")

Application

  • For Petroleum Based Hydraulic Fluids and Lubricating Oils

SAE100 R5R

Products Detail

Country of Origin

  • Made in India / Imported

Material

  • Rubber

Reinforcement

  • One Fiber Braided & One Steel Wire Braided

Working Pressure

  • 24 Bar to 207 Bar

Temperature

  • -40°C to +100°C

Use For

  • Industrial

Available Size (ID)

  • 5mm (3/16") to 60.3mm (2.3/8")

Application

  • For Petroleum Based Hydraulic Fluids and Lubricating Oils

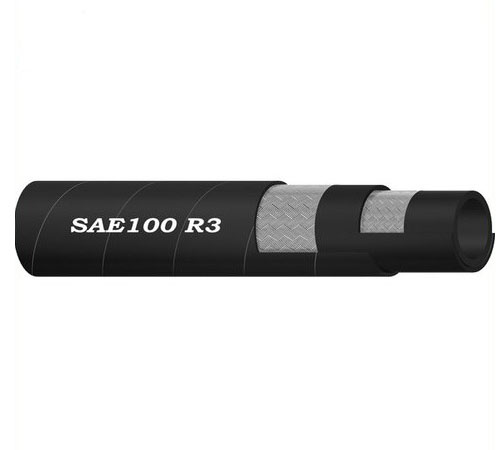

SAE100 R3

Products Detail

Country of Origin

  • Made in India / Imported

Material

  • Rubber

Reinforcement

  • Two Fiber Braided

Working Pressure

  • 15 Bar to 86 Bar

Temperature

  • -40°C to +100°C

Use For

  • Industrial

Available Size (ID)

  • 6.4mm (1/4") to 50.8mm (2")

Application

  • For Petroleum Based Hydraulic Fluids and Lubricating Oils

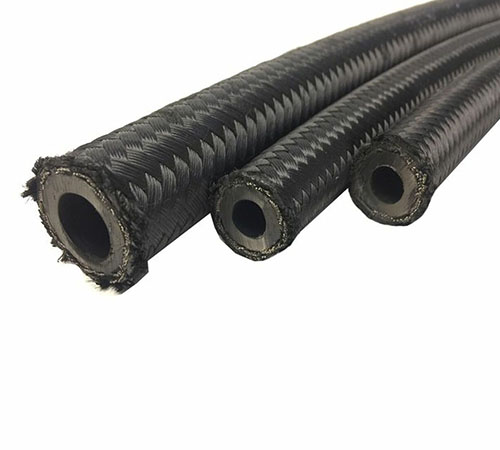

SAE100 R6

Products Detail

Country of Origin

  • Made in India / Imported

Material

  • Rubber

Reinforcement

  • One Synthetic Textile Braided

Working Pressure

  • 13 Bar to 28 Bar

Temperature

  • -40°C to +100°C

Use For

  • Industrial

Available Size (ID)

  • 6.4mm (1/4") to 25.4mm (1")

Application

  • For Low Pressure Hydraulic Oils

Spiral Hydraulic Hose (4SP)

Products Detail

Country of Origin

  • Made in India / Imported

Material

  • Rubber

Reinforcement

  • Four Spiral Steel Wire

Working Pressure

  • 275 Bar to 450 Bar

Temperature

  • -40°C to +100°C

Use For

  • Industrial

Available Size (ID)

  • 9.5mm (3/8") to 25.4mm (1")

Application

  • For Petroleum Based Hydraulic Fluids and Lubricating Oils

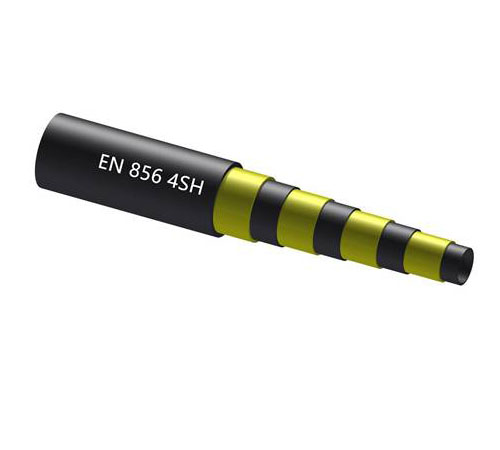

Spiral Hydraulic Hose (4SH)

Products Detail

Country of Origin

  • Made in India / Imported

Material

  • Rubber

Reinforcement

  • Four Spiral Steel Wire

Working Pressure

  • 250 Bar to 420 Bar

Temperature

  • -40°C to +100°C

Use For

  • Industrial

Available Size (ID)

  • 9.5mm (3/8") to 25.4mm (1")

Application

  • For Petroleum Based Hydraulic Fluids and Lubricating Oils

SAE100 R12

Products Detail

Country of Origin

  • Made in India / Imported

Material

  • Rubber

Reinforcement

  • Four Spiral Steel Wire

Working Pressure

  • 175Bar to 280Bar

Temperature

  • -40°C to +120°C

Use For

  • Industrial

Available Size (ID)

  • 9.5mm (3/8") to 50.8mm (2")

Application

  • For Petroleum Based Hydraulic Fluids and Lubricating Oils

SAE100 R13

Products Detail

Country of Origin

  • Made in India / Imported

Material

  • Rubber

Reinforcement

  • Four or Six Spiral Steel Wire

Working Pressure

  • 350Bar (5000 PSI)

Temperature

  • -40°C to +120°C

Use For

  • Industrial

Available Size (ID)

  • 19mm (3/4") to 50.8mm (2")

Application

  • For Petroleum Based Hydraulic Fluids and Lubricating Oils

SAE100 R15

Products Detail

Country of Origin

  • Made in India / Imported

Material

  • Rubber

Reinforcement

  • Four or Six High Tensile Steel Wire Spiral

Working Pressure

  • 414Bar (6000 PSI)

Temperature

  • -40°C to +100°C

Use For

  • Industrial

Available Size (ID)

  • 19mm (3/4") to 38.1mm (1.1/2")

Application

  • For Extremely High Pressure, Heavy Duty, High Impulse Hydraulics

Water Blast Hose

Products Detail

Country of Origin

  • Made in India / Imported

Material

  • Rubber

Reinforcement

  • Four High Tensile Steel Wire Spiral

Working Pressure

  • 830Bar (12000 PSI)

Temperature

  • 0°C to +80°C

Use For

  • Industrial

Available Size (ID)

  • 9.5mm(3/8"), 12.7mm(1/2"), 19mm(3/4")

Application

  • Ultra High Pressure Water Blast Applications (Not Recommended for Hydraulics Applications)

SAE100 R7

Products Detail

Country of Origin

  • Made in India / Imported

Material

  • TPE

Reinforcement

  • One Synthetic Fibre Braided

Working Pressure

  • 70 Bar to 210 Bar

Temperature

  • -40°C to +100°C

Use For

  • Industrial

Available Size (ID)

  • 3.2mm to 25.4mm

Application

  • For Medium Pressure Hydraulic Service (Petroleum, Water based Fluids etc)

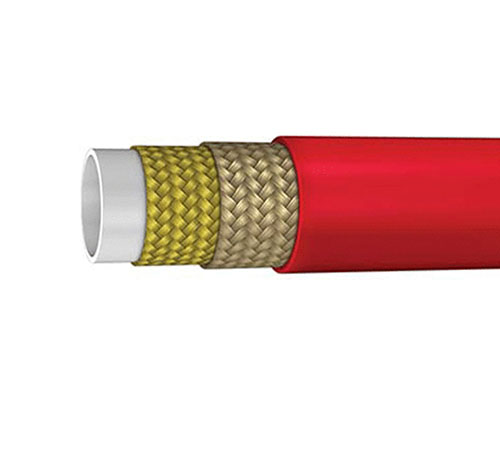

SAE100 R8

Products Detail

Country of Origin

  • Made in India / Imported

Material

  • TPE

Reinforcement

  • Two Synthetic Fibre Braided

Working Pressure

  • 70 Bar to 210 Bar

Temperature

  • -40°C to +100°C

Use For

  • Industrial

Available Size (ID)

  • 6.4mm to 25.4mm

Application

  • For High Pressure Hydraulic Service (Petroleum, Water based Fluids etc)

TPR1

Products Detail

Country of Origin

  • Made in India / Imported

Material

  • TPE

Reinforcement

  • One Steel Wire Braided

Working Pressure

  • 100 Bar to 300 Bar

Temperature

  • -40°C to +100°C

Use For

  • Industrial

Available Size (ID)

  • 3.2mm to 25.4mm

Application

  • For Medium Pressure Hydraulic Service (Petroleum, Water based Fluids etc)

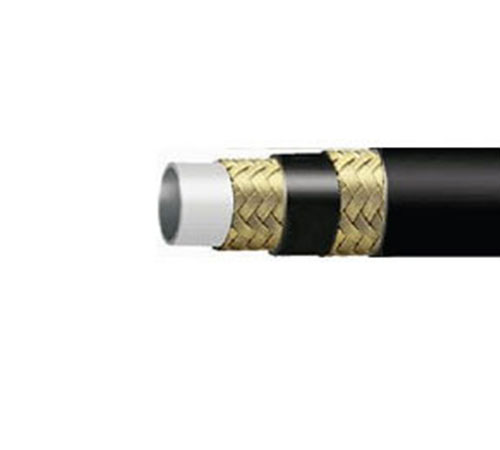

TPR2

Products Detail

Country of Origin

  • Made in India / Imported

Material

  • TPE

Reinforcement

  • Two Steel Wire Braided

Working Pressure

  • 150 Bar to 430 Bar

Temperature

  • -40°C to +100°C

Use For

  • Industrial

Available Size (ID)

  • 6.4mm to 25.4mm

Application

  • For High Pressure Hydraulic Service (Petroleum, Water based Fluids etc)

TP Jack Hose

Products Detail

Country of Origin

  • Made in India / Imported

Material

  • TPE

Reinforcement

  • Two Steel Wire Braided

Working Pressure

  • 700 Bar

Temperature

  • -40°C to +100°C

Use For

  • Industrial

Available Size (ID)

  • 6.4mm & 9.5mm

Application

  • For High Pressure Hydraulic Lines (Petroleum, Water based Fluids etc)

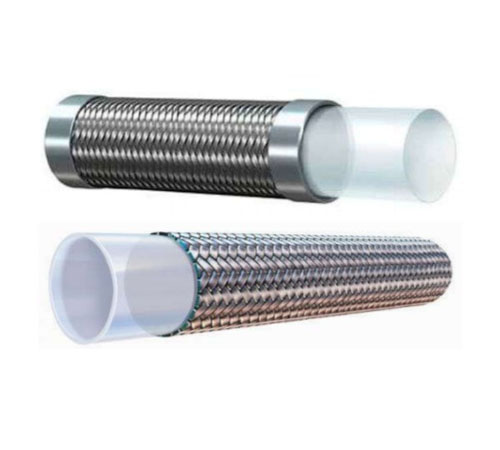

Teflon Hose (Smooth)

Products Detail

Country of Origin

  • Made in India / Imported

Material

  • PTFE

Reinforcement

  • Outside SS Wire Braiding

Working Pressure

  • 44 Bar to 225 Bar

Temperature

  • -54°C to +260°C

Use For

  • Industrial

Available Size (ID)

  • 3mm to 29mm

Application

  • For Transfer of Fluied (Paint, Steam, Oil, Acid, Solvent, Chemical, Gas etc)

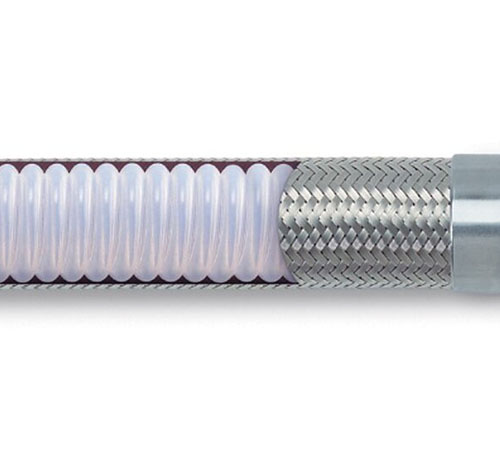

Teflon Hose (Corrugated)

Products Detail

Country of Origin

  • Made in India / Imported

Material

  • PTFE

Reinforcement

  • Outside SS Wire Braiding

Working Pressure

  • 25 Bar to 150 Bar

Temperature

  • -54°C to +260°C

Use For

  • Industrial

Available Size (ID)

  • 9.5mm to 50.8mm

Application

  • For Transfer of Fluied (Paint, Steam, Oil, Acid, Solvent, Chemical, Gas etc)
